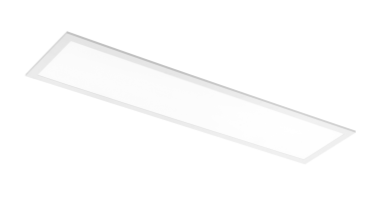

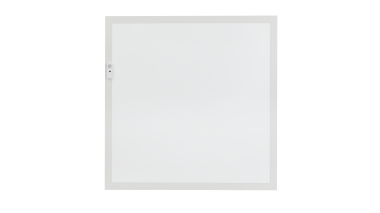

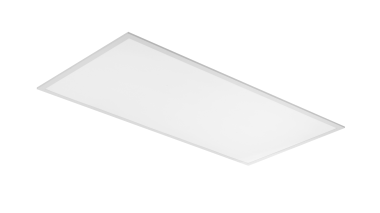

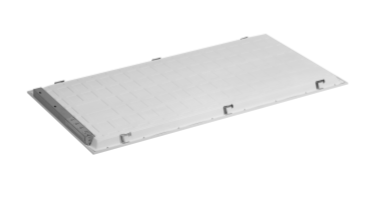

Back-lit panel
3 CCT and 3 power DIPSWITCH
Pluggable sensor (optional)
UGR<19 (optional)
High efficiency, up to 125lm/W, DLC 5.1 listed
0-10V dimmable
50,000hrs lifetime design for driver and LED
With PMMA lens last for 10 years
5 years warranty
Item | 2x4 | 2x2 | 1x4 |
Model | FS-ZXS-2X4-50W-3W3CCT | FS-ZXS-2X2-40W-3W3CCT | FS-ZXS-1X4-40W-3W3CCT |
Certification | ETL, DLC5.1 | ||
CCT | 3000K/4000K/5000K DIP SWITCH | ||
Driver type | CUPOWER brand, isolated, flicker free | ||
Input Voltage | 120~277V(347V), 50/60Hz | ||
Power | 30/40/50W DIPSWITCH 40/50/60W DIPSWITCH | 20/30/40W DIPSWITCH | 20/30/40W DIPSWITCH |
Power factor | PF≥0.9 | ||
Light efficiency | 110/125lpw | ||
CRI | 80/90 Ra | ||
UGR | <22 | ||
SDCM | <5 | ||
Dimming | 0-10V, Pluggable sensor | ||
Beam Angle | 120° | ||
LED | Jufei 2835 9V100mA 96PCS x 2 | Jufei 2835 9V100mA 48PCS x 2 | Jufei 2835 9V100mA 48PCS x 2 |
Product size | 603x1213x39mm | 603x603x39mm | 303x1213x39mm |
Life span | 50,000H | ||
IP level | IP40 | ||
Material | SPCC housing + AL frame + PS diffuser + PMMA lens | ||
Oper. Temperature | -15℃- 40℃ | ||
Warranty | 5 years | ||
