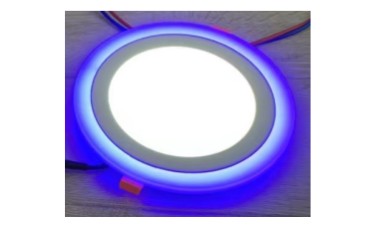

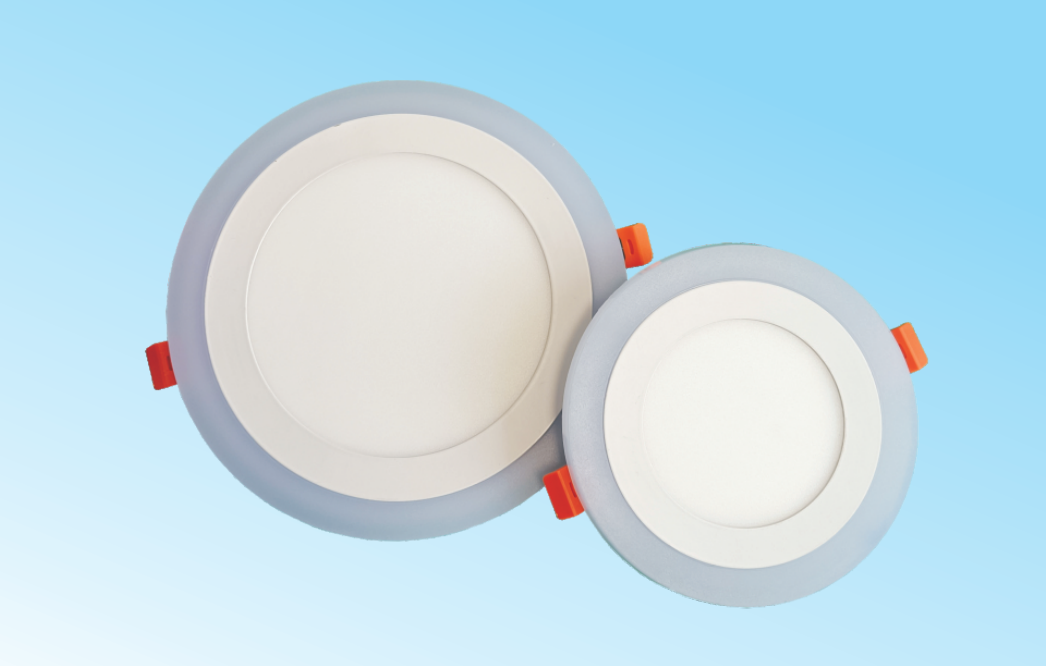

RGB + white downlight
White color + RGB, control by PUSH switch
Triac dimmable
Super Thin
Input Voltage: 120Vac
50,000hrs life design for driver and LED
Warranty: 5years
PRODUCT DESCRIPTION
Item | 4 inch | 6 inch |
Model | FS-DCDL-4C-9W+5W | FS-DCDL-6C-12W+5W |
Certification | ETL, ES | |
CCT | Inside: 3000K/4000K/5000K + Outside: R/G/B | |
Driver type | Isolated driver, flicker free | |
Input Voltage | 120V, 60Hz | |
Power | 9W + 5W | 12W + 5W |
Power factor | PF≥0.9 | |
Light efficiency | 80lpw | |
CRI | 80Ra | |
SDCM | <5 | |
Dimming | Triac | |
Beam Angle | 120° | |
LED | Hongli 2835 3V150mA 48PCS x 2 | Hongli 2835 3V150mA 72PCS x 2 |
Product size | Φ145x10mm | Φ195x10mm |
Life span | 50,000H | |
IP level | IP40 | |
Oper. Temperature | -15℃-40℃ | |
Warranty | 5 years | |
