Fire proof downlight
Surrounded by non-combustible material, fire proof
3 CCT DIP switch
Triac dimmable
Super Thin
50,000hrs life design for driver and LED
Warranty: 5years
PRODUCT DESCRIPTION
Item | 4 inch | 6 inch | 8 inch |
Model | FS-FPDL-4C-12W-5CCT | FS-FPDL-6C-18W-5CCT | FS-FPDL-8C-24W-5CCT |
Certification | ETL, ES | ||
CCT | 2700K/3000K/3500K/4000K/5000K DIP SWITCH | ||
Driver type | Isolated, flicker free | ||
Input Voltage | 120V, 50/60Hz | ||
Power | 10W | 15W | 24W |
Power factor | PF≥0.7 | ||
Light efficiency | 80lpw | ||
CRI | 80Ra | ||
SDCM | <5 | ||
Dimming | Triac | ||
Beam Angle | 120° | ||
LED | Hongli 2835 9V100mA 15PCS x 2 | Hongli 2835 9V100mA 32PCS x 2 | Hongli 2835 3V150mA 48PCS x 2 |

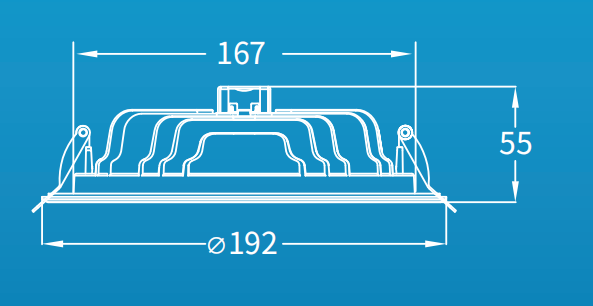

Product size | Φ127x53mm | Φ192x55mm | Φ225x55mm |
Cutout size | Φ105mm | Φ167mm | Φ201mm |
Life span | 50,000H | ||
IP level | IP40 | ||
Oper. Temperature | -15℃- 40℃ | ||
Warranty | 5 years | ||
