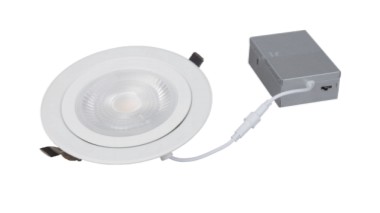

Rotate downlight
Adjustabole light beam

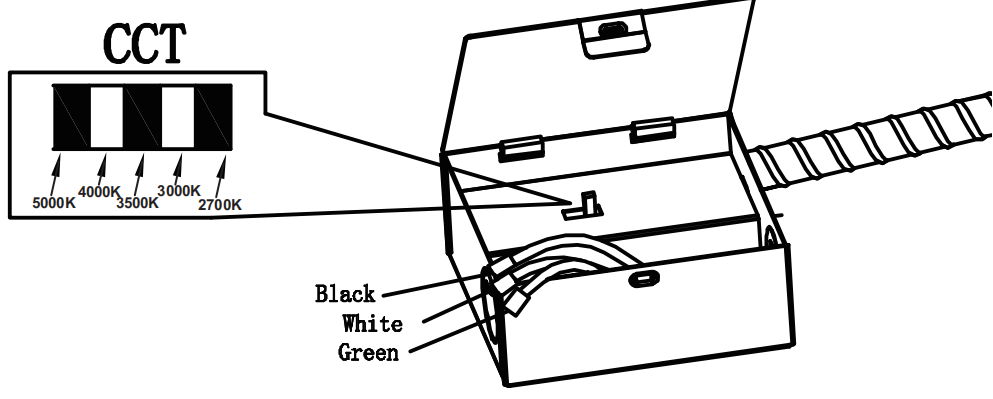

5 CCT DIP Switch
Triac dimmable
Input Voltage: 120Vac
50,000hrs life design for driver and LED
Warranty: 5years
PRODUCT DESCRIPTION
Item | 4 inch | 6 inch |
Model | FS-XZDL-4C-9W-CCT | FS-XZDL-6C-12W-CCT |
Certification | ETL, ES | |
CCT | 2700K/3000K/3500K/4000K/5000K DIP Switch | |
Driver type | Isolated driver, flicker free | |
Input Voltage | 120V, 60Hz | |
Power | 9W | 12W |
Power factor | PF≥0.7 | |
Light efficiency | 80lpw | |
CRI | 80Ra | |
SDCM | <5 | |
Dimming | Triac | |
Beam Angle | 25° | |
LED | Hongli 2835 9V100mA 12PCS x 2 | Hongli 2835 3V150mA 16PCS x 2 |
Product size | Φ130x41mm | Φ173x41mm |
Cutout sieze | Φ109mm | Φ148mm |
Life span | 50,000H | |
IP level | IP40 | |
Oper. Temperature | -15℃-40℃ | |
Warranty | 5 years | |
