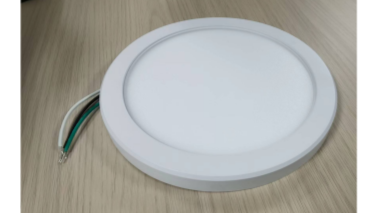

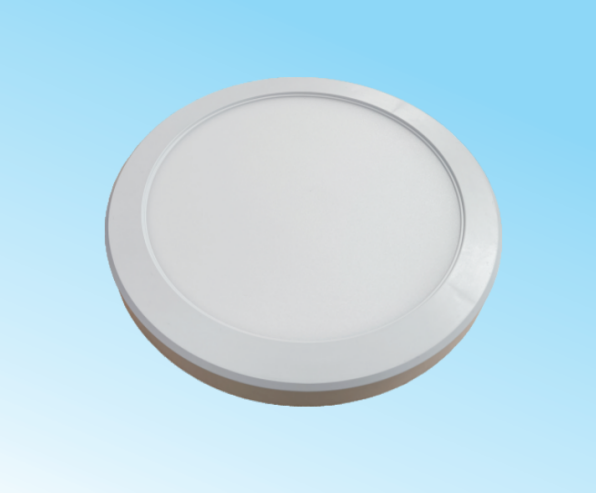

Surface mount downlight
Surface mount design
Triac dimmable
Super Thin
Input Voltage: 120Vac
50,000hrs life design for driver and LED
Warranty: 5years
PRODUCT DESCRIPTION
Item | 5 inch | 7 inch | 9 inch | 12 inch |
Model | FS-BM-CFG-5C -10W-CCT | FS-BM-CFG-7C -15W-CCT | FS-BM-CFG-9C-18W-CCT | FS-BM-CFG-12C-24W-CCT |
Certification | ETL, ES | |||

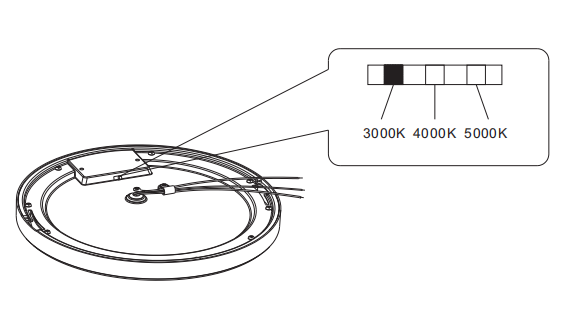

CCT | 3000K/4000K/5000K DIP SWITCH | |||
Driver type | Isolated, flicker free | |||
Input Voltage | 120V, 50/60Hz | |||
Power | 10W | 15W | 18W | 24W |
Power factor | PF≥0.7 | |||
Light efficiency | 80lpw | |||
CRI | 80Ra | |||
SDCM | <5 | |||
Dimming | Triac | |||
Beam Angle | 120° | |||
LED | Hongli 2835 9V60mA 30PCS x 2 | Hongli 2835 9V60mA 32PCS x 2 | Hongli 2835 9V60mA 46PCS x 2 | Hongli 2835 9V60mA 46PCS x 2 |
Product size | Φ140x18mm | Φ180x18mm | Φ225x18mm | Φ305x18mm |
Cutout size | Φ105mm | Φ167mm | Φ201mm | |
Life span | 50,000H | |||
IP level | IP40 | |||
Oper. Temperature | -15℃- 40℃ | |||
Warranty | 5 years | |||
