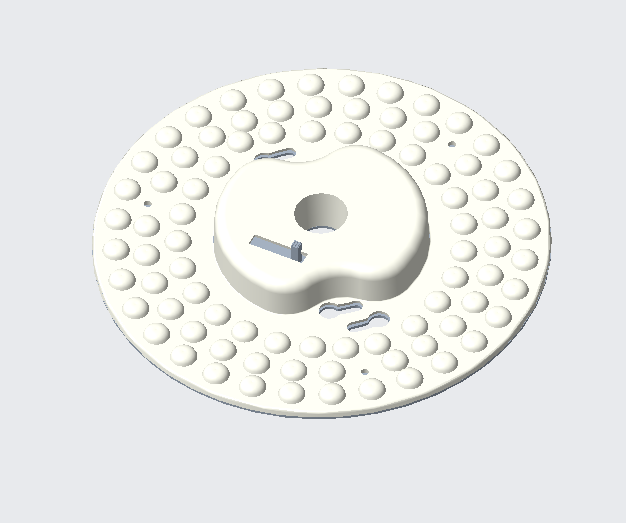

LED replacement module of ceiling light
Magnet adsorption mount, quick replace
3 CCT DIP switch
Triac dimmable
Input Voltage: 120Vac
50,000hrs life design for driver and LED
Warranty: 5years
PRODUCT DESCRIPTION
Item | Φ130 | Φ170 |
Model | FS-LED Module-15W-CCT | FS-LED Module-20W-CCT |
Certification | ETL, ES | |
CCT | 3000K/4000K/5000K DIPSWITCH | |
Driver type | Isolated driver, flicker free | |
Input Voltage | 120V, 60Hz | |
Power | 15W | 20W |
Power factor | PF≥0.7 | |
Light efficiency | 100lpw | |
CRI | 80Ra | |
UGR | <22 | |
SDCM | <5 | |
Dimming | Triac | |
Beam Angle | 120° | |
LED | Jufei 2835 9V100mA 28PCS x 2 | Jufei 2835 9V100mA 42PCS x 2 |

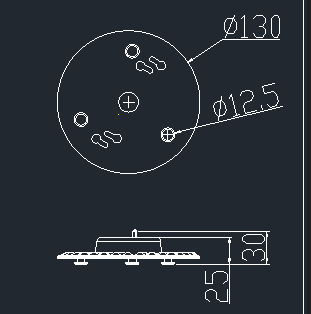

Product size | Φ130x30mm | Φ170x30mm |
Life span | 50,000H | |
IP level | IP40 | |
Oper. Temperature | -15℃-40℃ | |
Warranty | 5 years | |
