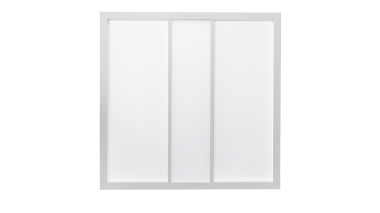

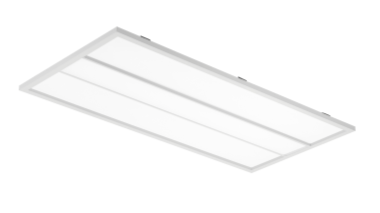

Panel type troffer
3 CCT and 3 power DIPSWITCH
Soft and comfortable lighting output
UGR<19 & Flicker-free (optional)
High efficiency, up to 125lm/W, DLC 5.1 listed
0-10V dimmable
50,000hrs lifetime design for driver and LED
With PMMA lens last for 10 years
5 years warranty
Item | 2x4 | 2x2 |
Model | FS-SDMBD-2X4-50W-3W3CCT | FS-SDMBD-2X2-40W-3W3CCT |
Certification | ETL, DLC5.1 | |
CCT | 3000K/4000K/5000K DIPSWITCH | |
Driver type | CUPOWER brand, isolated, flicker free | |
Input Voltage | 120~277V(347V), 50/60Hz | |
Power | 30/40/50W DIPSWITCH | 20/30/40W DIPSWITCH |
Power factor | PF≥0.9 | |
Light efficiency | 110/125lpw | |
CRI | 80Ra | |
UGR | <22 | |
SDCM | <5 | |
Dimming | 0-10V | |
Beam Angle | 120° | |
LED | Jufei 2835 9V100mA 96PCS x 2 | Jufei 2835 9V100mA 48PCS x 2 |
Product size | 603x1213x50mm | 603x603x50mm |
Life span | 50,000H | |
IP level | IP40 | |
Material | SPCC housing + AL frame + PS diffuser + PMMA lens | |
Oper. Temperature | -15℃-40℃ | |
Warranty | 5 years | |
