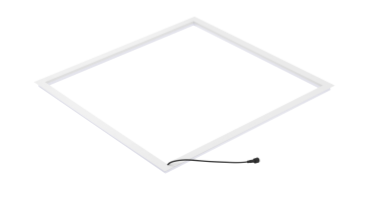

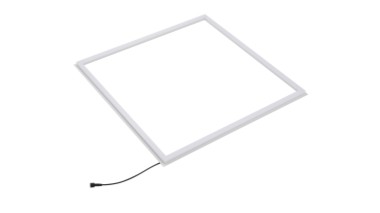

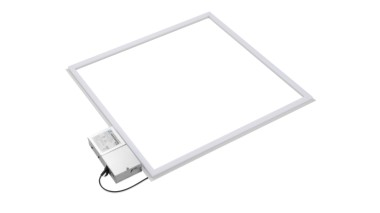

LED frame light
Fashion design, unique selling point
High efficiency, up to 125lm/W, DLC 5.1 listed
1-10V & DALI dim available
50,000hrs lifetime design for driver and LED
5 years warranty
Item | 6060 | 30120 | 60120 |
Model | FS-SDMBD-595x595 | FS-SDMBD-595x595 | FS-SDMBD-595x595 |
Certification | TUV-CE, CB, RoHS, ERP | ||
CCT | 3000K/4000K/5000K/6500K | ||
Driver type | CUPOWER brand, isolated, flicker free | ||
Input Voltage | 200~240V, 50/60Hz | ||
Power | 30W/36W/40W | 30W/36W/40W | 50w/60w |
Power factor | PF≥0.9 | ||
Light efficiency | 100/120 lm/w | ||
CRI | 80/90 Ra | ||
SDCM | <5 | ||
Dimming | 1-10V, DALI, Traic available | ||
Beam Angle | 120°/ 90° | ||
LED | Hongli 2835 3V150mA 278PCS x 2 | Hongli 2835 3V150mA 180PCS x 2 | Hongli 2835 3V150mA 216PCS x 2 |
Product size | 595x595x16mm | 295x1195x16mm | 595x1195x16mm |
Life span | 50,000H | ||
IP level | IP40 | ||
Material | AL frame + PS diffuser | ||
Oper. Temperature | -15℃- 40℃ | ||
Warranty | 5 years | ||
