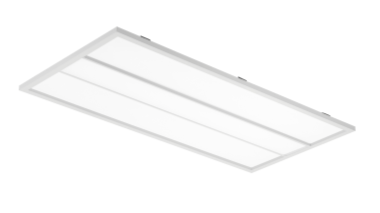

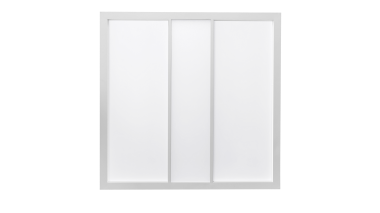

Back-lit panel troffer
Fashion design, unique selling point
Soft and comfortable lighting output
UGR<19 & Flicker-free (optional)
High efficiency, up to 120lm/W
1-10V & DALI dimmable
50,000hrs lifetime design for driver and LED
With PMMA lens last for 10 years
5 years warranty
Item | 6060 | 60120 |
Model | FS-SDMBD-595x595 | FS-SDMBD-595x1195 |
Certification | TUV-CE, CB, RoHS, ERP | |
CCT | 3000K/4000K/5000K/6500K | |
Driver type | CUPOWER brand, isolated, flicker free | |
Input Voltage | 220-240V, 50/60Hz | |
Power | 30W/36W/40W | 50W/60W |
Power factor | PF≥0.9 | |
Light efficiency | 100/110/120/130 lm/w | |
CRI | 80/90 Ra | |
UGR | <22/ <19 | |
SDCM | <5 | |
Dimming | 1-10V, DALI, Traic available | |
Beam Angle | 120°/ 90° | |
LED | Hongli 2835 9V100mA 48PCS | Hongli 2835 9V100mA 96PCS |
Product size | 595x595x33mm | 595x595x33mm |
Life span | 50,000H | |
IP level | IP40 | |
Material | SPCC housing + AL frame + PS diffuser + PMMA lens | |
Oper. Temperature | -15℃-40℃ | |
Warranty | 5 years | |
