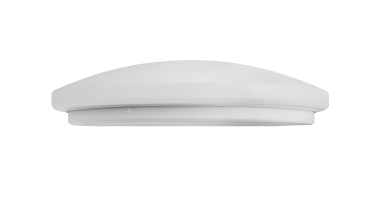

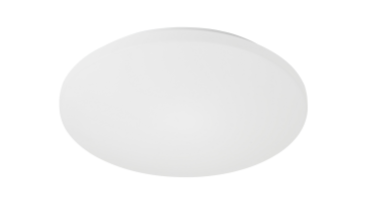

Round ceiling light
3 CCT DIP switch
Anti-dust design, reach IP44
High efficiency, up to 100lm/w
Soft and comfortable lighting output, flicker-FREE
With PMMA lens last for 10 years
Microwave sensor type (optional)
50,000hrs life design for driver and LED
3 or 5 years warranty
Item | Φ238 | Φ288 | Φ338 |
Model | FS-XDD-Y238-8W | FS-XDD-Y288-12W | FS-XDD-Y338-16W |
Certification | TUV-CE, CB, RoHS, ERP | ||
CCT | 3000/4000/5000K DIP switch | ||
Driver type | Isolated, flicker free | ||
Input Voltage | 230V 50/60Hz | ||
Power | 8W | 12W | 16W |
Power factor | PF≥0.9 | ||
Light efficiency | 100lm/w | ||
CRI | 80/90 Ra | ||
UGR | <22 | ||
SDCM | <5 | ||
Dimming | No | ||
Beam Angle | 120° | ||
LED | Hongli 2835 9V100mA 12PCS x 2 | Hongli 2835 9V100mA 16PCS x 2 | Hongli 2835 9V100mA 24PCS x 2 |
Product Size | 238(D)x80(H)mm | 288(D)x80(H)mm | 338(D)x80(H)mm |
Life span | 50,000H | ||
IP level | IP44 | ||
Material | SPCC housing + PS diffuser | ||
Oper. Temperature(℃) | -15℃-40℃ | ||
Warranty | 3 or 5 years | ||
