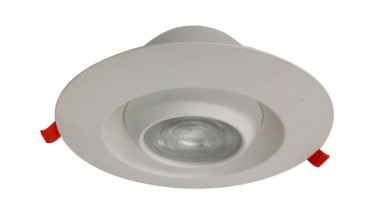

Gimbal downlight
Gimbal downlight
Adjustabole light beam
3 CCT DIP Switch
Triac dimmable
Input Voltage: 120Vac
50,000hrs life design for driver and LED
Warranty: 5years
PRODUCT DESCRIPTION
Item | 4 inch | 6 inch |
Model | FS-NYDL-4C-9W-CCT | FS-NYDL-6C-12W-CCT |
Certification | ETL, ES | |
CCT | 3000K/4000K/5000K DIP Switch | |
Driver type | Isolated driver, flicker free | |
Input Voltage | 120V, 60Hz | |
Power | 9W | 15W |
Power factor | PF≥0.7 | |
Light efficiency | 80lpw | |
CRI | 80Ra | |
SDCM | <5 | |
Dimming | Triac | |
Beam Angle | 24° | |
LED | Hongli COB1919 | Hongli COB1919 |
Product size | Φ130x60mm | Φ185x75mm |
Cutout sieze | Φ109mm | Φ164mm |
Life span | 50,000H | |
IP level | IP40 | |
Oper. Temperature | -15℃-40℃ | |
Warranty | 5 years | |
