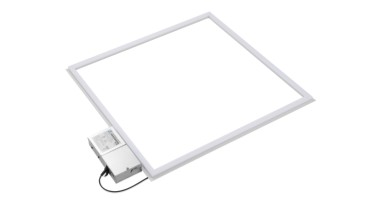

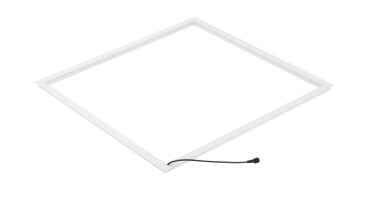

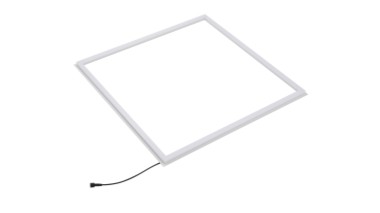

LED Frame light
3 CCT and 3 power DIPSWITCH
Fashion design, unique selling point
High efficiency, up to 125lm/W, DLC 5.1 listed
0-10V dimmable
50,000hrs lifetime design for driver and LED
5 years warranty
Item | 2x4 | 2x2 | 1x4 |
Model | FS-BKD-2X4-50W- 3W3CCT | FS-BKD-2X2-40W- 3W3CCT | FS-BKD-1X4-40W- 3W3CCT |
Certification | ETL, DLC5.1 | ||
CCT | 3000K/4000K/5000K DIP SWITCH | ||
Driver type | CUPOWER brand, isolated, flicker free | ||
Input Voltage | 120~277V(347V), 50/60Hz | ||
Power | 30/40/50W DIPSWITCH | 20/30/40W DIPSWITCH | 20/30/40W DIPSWITCH |
Power factor | PF≥0.9 | ||
Light efficiency | 110/125lpw | ||
CRI | 80/90 Ra | ||
SDCM | <5 | ||
Dimming | 0-10V | ||
Beam Angle | 120° | ||
LED | Hongli 2835 3V150mA 278PCS x 2 | Hongli 2835 3V150mA 180PCS x 2 | Hongli 2835 3V150mA 216PCS x 2 |
Product size | 603x1213x16mm | 603x603x16mm | 303x1213x16mm |
Life span | 50,000H | ||
IP level | IP40 | ||
Material | AL frame + PS diffuser | ||
Oper. Temperature | -15℃- 40℃ | ||
Warranty | 5 years | ||
