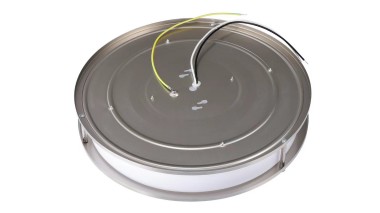

Double ring flush mount ceiling light
New structure design, super thin, only 65mm height
360° light emitting, uniform and comfortable diffused light
Triac dimmable, 5 CCT DIP switch
12 inch through 16 inch in diameter available
Emergency type available
50,000hrs life design for driver and LED
5 years warranty
Item | 12 inch | 14 inch | 16 inch |
Model | FS-SH-12C-BM-16W-CCT | FS-SH-14C-BM-22W-CCT | FS-SH-16C-BM-26W-CCT |
Certification | ETL, Energy Star | ||
CCT | 2700/3000/3500/4000/5000K DIP SWITCH | ||
Driver type | Isolated, flicker free | ||
Input Voltage | 120V, 50/60Hz | ||
Power | 15W | 20W | 25W |
Power factor | PF≥0.7 | ||
Light efficiency | 80lpw | ||
CRI | 80Ra | ||
UGR | <22 | ||
SDCM | <5 | ||
Dimming | Triac | ||
Beam Angle | 120° | ||
LED | Hongli 2835 9V100mA 21PCS x 2 | Hongli 2835 9V100mA 32PCS x 2 | Hongli 2835 9V100mA 32PCS x 2 |
Product size | 305(D)x65(H)mm | 355(D)x75(H)mm | 405(D)x85(H)mm |
Life span | 50000H | ||
IP level | IP40 | ||
Material | SPCC housing + PS diffuser | ||
Oper. Temperature | -15℃-40℃ | ||
Warranty | 5 years | ||
